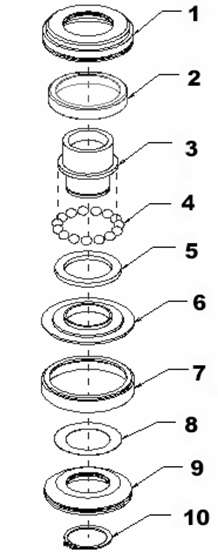

20022 CARTRIDGE ASSEMBLY PARTS LIST
| |
|
 |
|
|
| |
|
|
|
|
| |
|
| ITEM |
QTY |
PART NUMBER |
PART NAME |
| 1 |
1 |
30102 |
UPPER PISTON WITH 133 AND 151 O
RINGS |
| 2 |
1 |
30103 |
BEARING RACE |
| 3 |
1 |
30108 |
SLEEVE |
| 4 |
15 |
30111 |
3/8 IN. BALL |
| 5 |
1 |
30121 |
THRUST WASHER |
| 6 |
1 |
30104 |
BALL BASE |
| 7 |
1 |
30105 |
SPACER WITH 151 O RING |
| 8 |
1 |
30112 |
BELLEVILLE SPRING |
| 9 |
1 |
30106 |
LOWER PISTON WITH 148 AND 129 O
RINGS |
| 10 |
1 |
30113 |
SNAP RING |
|
|
|
